Introduction

SUPERVAC®

VIP-Vacuum Insulation Panel

SUPERVAC® is a vacuum insulation material that is typically vacuum- treated to an internal pressure of 1mbar or less, called VACUUM Insulation Panel (VIP)

High-performance / Noncombustible material >> Initial Thermal Conductivity 0.0021 W/m·K

  • It has 8 to 10 times better thermal performance than other conventional insulation materials
  • It is a noncombustible material which prevents poisonous gas and fire spread in case of fire

Reduced Insulation Thickness / Increased Usable Space

  • The low thermal conductivity of VIP allows thickness of the insulation wall to be reduced and usable space to be increased
  • 10㎜ of SUPERVAC® can replace 155㎜ of EPS

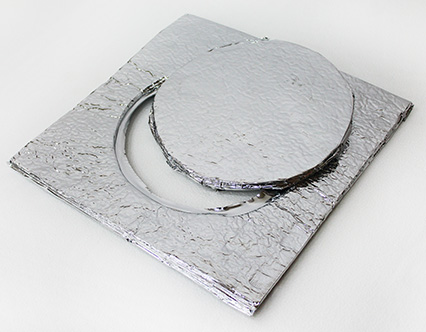

High-Vacuum Insulation

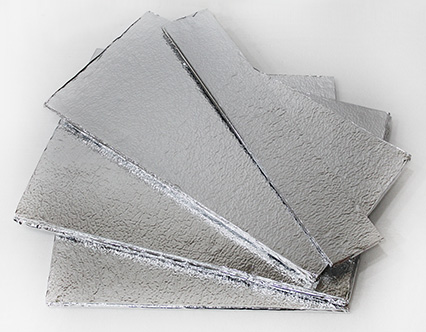

High-Vacuum Insulation

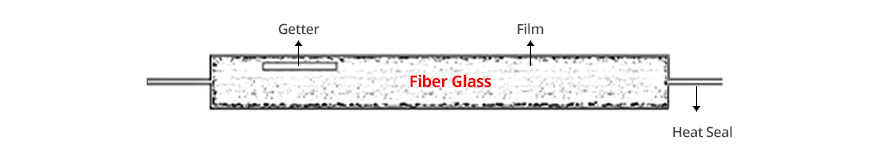

Product Structure

structure

structure

FILM
Blocking of external moisture and gas
Dry Laminating Multi Layer Film

structure

GETTER
Residual gas and moisture adsorption
Composed of oxides and metal substances

structure

CORE
Fiber Glass
Eco-friendly, non-combustible materials

Product Specifications

  • Property
  • Thermal Conductivity
  • Density
  • Thickness
  • Maximum Size (mm)
  • Standard Size (mm)
  • Operating Temperature
  • Fire Resistance
  • SUPERVAC®
  • 0.0021 W/mk
  • 250~350 kg/㎥
  • 8~40㎜
  • 1000*1500
  • 500*700, 450*900
  • -50~80 Degree, Centigrade
  • Noncombustible material

SUPERVAC® Heating Test

heating test

Before

heating test

After
Spray flame for 3 minutes on torch
No toxic gas / No flame spread

heating test

Backside
Only the heating area is warm
No heat conduction around
