Performance Comparison

High Thermal Insulation Performance

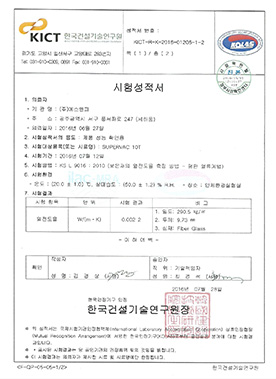

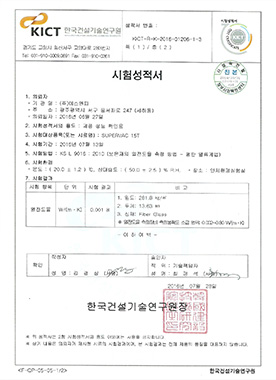

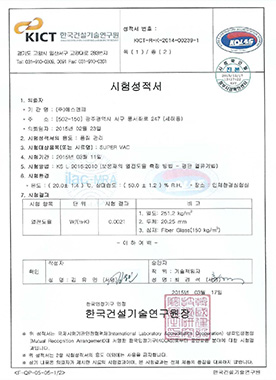

SUPERVAC® Thermal Conductivity Test Reports

test_report

KOLAS Certification
SUPERVAC 10T : 0.0022 W/m∙k

test_report

SUPERVAC 15T : 0.0018 W/m∙k

test_report

KOLAS Certification
SUPERVAC 20T : 0.0021 W/m∙k

SUPERVAC® & EPS Performance Comparison

Classification Thickness(㎜) Thermal Conductivity
(W/m∙k)
Thermal Resistance
(㎡∙k/W)
EPS Thickness of Same Performance
Thermal
Resistance
Thermal
Conductivity
Thickness (㎜)
SUPERVAC 10T 10 0.0021 4.76 4.76 0.034 161.84
SUPERVAC 15T 15 7.14 7.14 242.76
SUPERVAC 20T 20 9.52 9.52 323.68

Performance Comparison

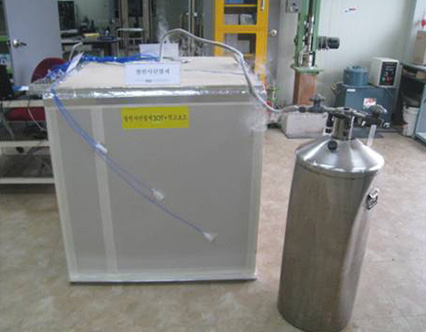

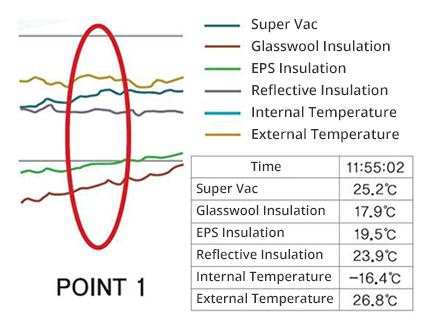

Insulation Performance Test

hight heating

hight heating

hight heating

  • Attach SUPERVAC®, EPS, Glasswool and Reflective insulation on each surface
  • Connect temperature sensors
  • Measure the temperature of each surface after injecting Nitrogen for 20 minutes

Thermal Images after 20 minutes

camera

SUPERVAC®

camera

EPS

camera

Glasswool

camera

Reflective insulation

SUPERVAC® hardly conducts cold air (Nitrogen).
The brighter colors (red, orange, yellow) indicate warmer temperatures while the purple and dark blue/black indicate cooler temperatures.

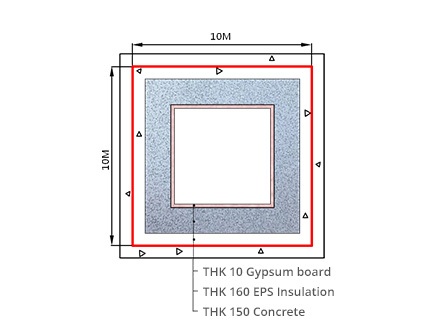

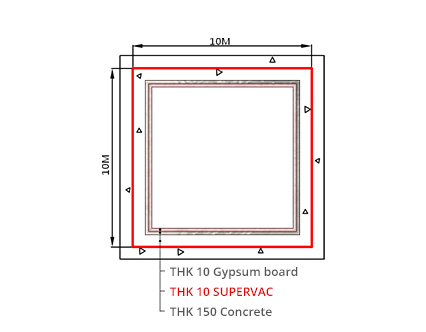

Thickness Comparison

Thickness Comparison

thickness

thickness

SUPERVAC®Construction Methods

Exterior wall insulation

Interior wall insulation
